LULA Elevator


LULA (Limited Use Limited Application) elevator is a bridge between a standard passenger elevator & an accessibility/ barrier free lift. It is detailed in section 5.2 of CSA B44/ ASME 17.1 as “a power passenger elevator, which following restrictions/ features”.

Advantages of LULA elevators: features mentioned below makes LULA Elevator a value solution for projects requiring barrier free access with provision of automatic control and automatic door operation.

  • Requires less shaft and machine room space as compared to a passenger elevator
  • LULA requires less pit depth and less overhead clearances than a conventional passenger elevator
  • Automatic door operation like passenger elevators
  • Non key, unrestricted access like passenger elevator
  • Ideal for retrofit applications (in schools, churches, medical offices etc.) due to easy civil construction.
  • 1:2 Roped, environmentally friendly, Non-buried hydraulic design


Entrances

Elevator Car Size

 mm (inch)

Shaft Size

mm (inch)

On the same side

1065 (42)

1525 (60)

1730 (68)

2020 (79.50)

1220 (48)

1375 (54)

1730 (68)

1895 (74.50)

On opposite sides

1065 (42)

1525 (60)

1730 (68)

2305 (90.75)

1220 (48)

1375 (54)

1730 (68)

2155 (84.75)

At Right angle

1295 (51)

1295 (51)

2108 (83)

1829 (72)





Standard Product Features with Available Options are:

  • Load Capacity: 636 Kg (1400 lbs)
  • Speed: 0.15 m/sec (30 fpm)
  • Travel: There is no travel restrictions. However certain AHJ (Authority Having Jurisdiction) may restrict the travel, therefore please qualify with our sales department. Furthermore, due to maximum permissible speed of 0.15 m/s (30 fpm), a LULA elevator may not be efficient for travel range beyond 9.14 m ~ 10.97 (30’ ~ 36’)
  • Minimum Required Pit Depth: 355 mm (14”)
  • Minimum Required Overhead: 3403 mm (134”). Customization is possible in case the overhead height is less than the above mentioned stipulated overhead height.
  • Maximum number of stops: as submitted above due to the restricted speed of 0.15 m/s (30 fpm), a LULA elevator may not be efficient for travel beyond 3 or 4 floors.
  • Car Area: maximum 18 sq. ft

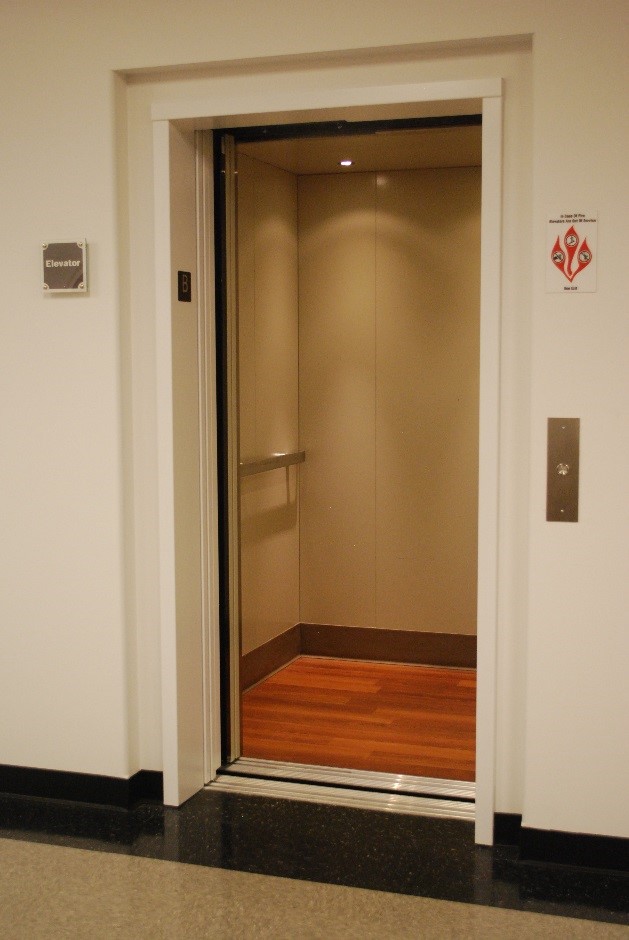

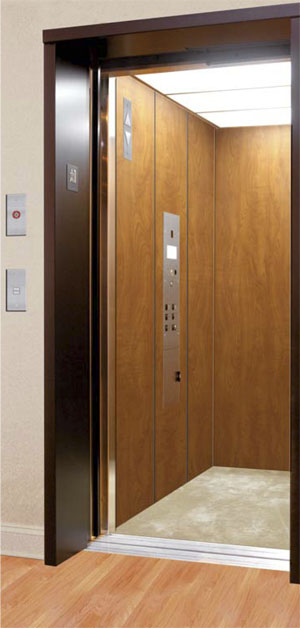

Cab finishes:

  • Recess provided in platform for finished floor by others
  • Optional Aluminum/ St. Steel checkered flooring
  • Walls & Ceiling are in plastic laminated finish
  • Optional #4 St. Steel elevator cab/ Glass Panel cab/ Rigidized metal panel finish
  • Elevator cab can also be provided in plywood finish with suitable weight contingency for wall cladding, final finishing by others
  • Other finishes may be available upon request.

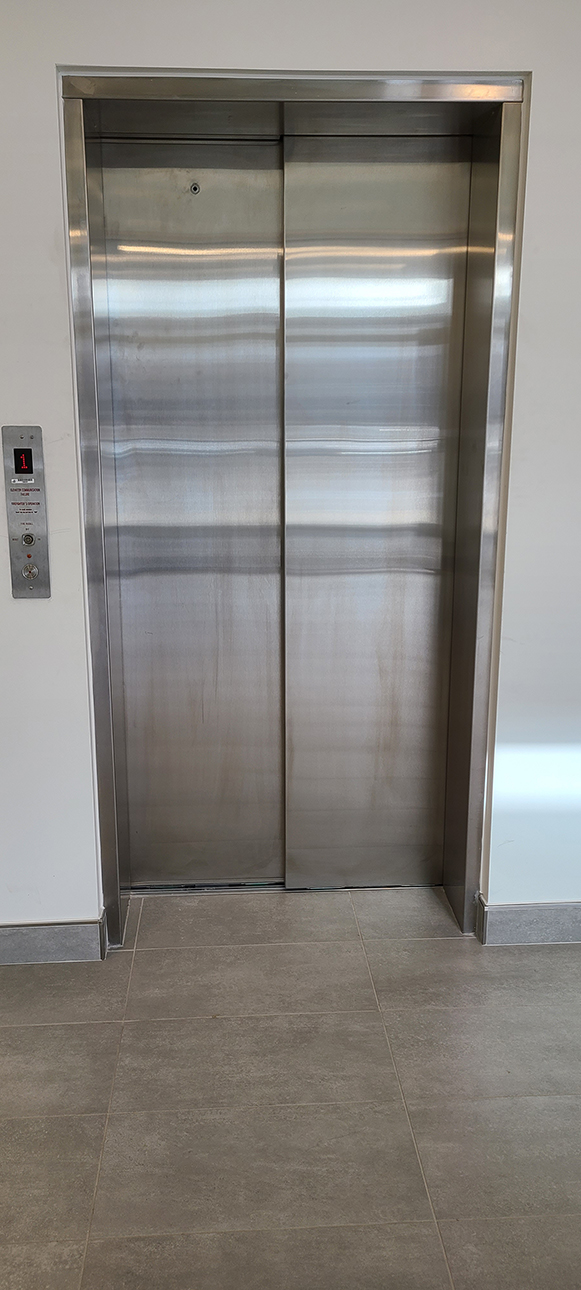

Entrances:

  • Entrances: 914 mm (36”) wide x 2032 mm (80”) high
  • 2-Speed horizontal sliding, Automatic operation, provided in prime/ powder coated finish
  • Optional #4 St. Steel entrances with/ without glass inserts in the door panels
  • 1.5 Hour fire rated doors
  • Aluminium sills with option for St. Steel/ Nickel Alloy entrance sills
  • Other finishes may be available on request.

Signals included:

  • Car LED Lighting
  • Car Operating Panel to include: Emergency Light, Capacity Tag, Cab Position & Directional Indicator, Landing Selection Button, Alarm Button, Autodialer Button & Speaker.
  • Arrival lights with chime
  • Provision for security card for restrictive access & camera is available

Safety Features:

  • Handrail
  • Infra-red door curtain
  • Battery operated alarm
  • Battery operated emergency cab lighting
  • Autodialer
  • Battery operated power of lowering
  • Fire fighter’s operation Phase 1

Microprocess based controller with Simplex only

Machine room details:

  • Minimum recommended size to be 1524 mm (60”) Wide x 1524 mm (60”) Deep x 2134 mm (84”) High
  • Machine room located adjacent to the hoistway shaft at bottom landing with solutions available for a remote machine room
  • With door swinging out
  • Provided with required electrical fused disconnect boxes, guarded light with a switch, GFCI Plug, fire alarm initiating devices etc.
  • Machine room to be constructed as per elevator code and building code with adequate ventilation to suit heat dissipation from the elevator equipment
