Vertical Platform Lift

Vertical Platform Lifts (VPL) are used for barrier free accessibility, for transportation of a person in a wheelchair with/without an attendant. These lifts are manufactured as per the elevator code CSA-B355 and are provided for both indoor as well as outdoor applications. Machine for a VPL is typically a hydraulic design powered by a hydraulic pump & cylinder assembly or are also offered as screw driven machines. As determined by AHJ (Authority Having Jurisdiction), a VPL can be installed in an un-enclosed hoist shaft for travel up to 2438 mm (8’ – 0”) and up to 7010 mm (23’ – 0”) in an enclosed hoistway shaft.

Advantages of a VPL (Vertical Platform Lifts):

  • Reliable and cost saving alternative to a Passenger Elevator/LULA Elevator
  • Design solutions available for limited overhead and/ or pit depth
  • Environmentally friendly non-buried hydraulic cylinder drive system
  • Easy to install and maintain the device with minimal running expense



Entrances

Elevator Car Size

 mm (inch)

Shaft Size

mm (inch)

On the same side

914 (36)

1220 (48)

1397 (55)

1422 (56)

914 (36)

1371 (54)

1397 (55)

1574 (62)

914 (36)

1525 (60)

1397 (55)

1727 (68)

On opposite sides

914 (36)

1220 (48)

1397 (55)

1245 (49)

914 (36)

1371 (54)

1397 (55)

1397 (55)

914 (36)

1524 (60)

1397 (55)

1550 (61)

At Right angle

914 (36)

1220 (48)

1090 (43)

1255 (49.5)

914 (36)

1371 (54)

1090 (43)

1410 (55.5)

914 (36)

1525 (60)

1090 (43)

1560 (61.5)





Other custom sizes too suit an existing space are available. Please contact us at: sales@expresselp.com

Standard Product Features with Available Options are:

  • Load Capacity: typically varies from 340 kg (750 lb) to 636 Kg (1400 lb)
  • Speed: 0.15 m/sec (30 fpm), with certain AHJ allowing for speed higher speed
  • Travel: As determined by AHJ (Authority Having Jurisdiction), a VPL can be installed in an un-enclosed hoist shaft for travel up to 2438 mm (8’ – 0”) and up to 7010 mm (23’ – 0”) in an enclosed hoistway shaft.
  • Pit Depth: varies between 75 mm (3”) and 200 (8”).
  • Minimum Required Overhead: 2438 mm (96”).
  • Maximum number of stops: this is limited by the maximum permissible travel limit
  • Car Area: maximum 20 sq. ft


Cab finishes:

  • Anti skid rubberized flooring by others
  • Optional Aluminum/ St. Steel checkered flooring
  • Walls & Ceiling are in melamine panel finish
  • Optional plastic laminated, #4 St. Steel elevator cab/ Glass Panel cab are available
  • Elevator cab can also be provided in plywood finish with suitable weight contingency for wall cladding, final finishing by others
  • Other finishes may be available upon request.

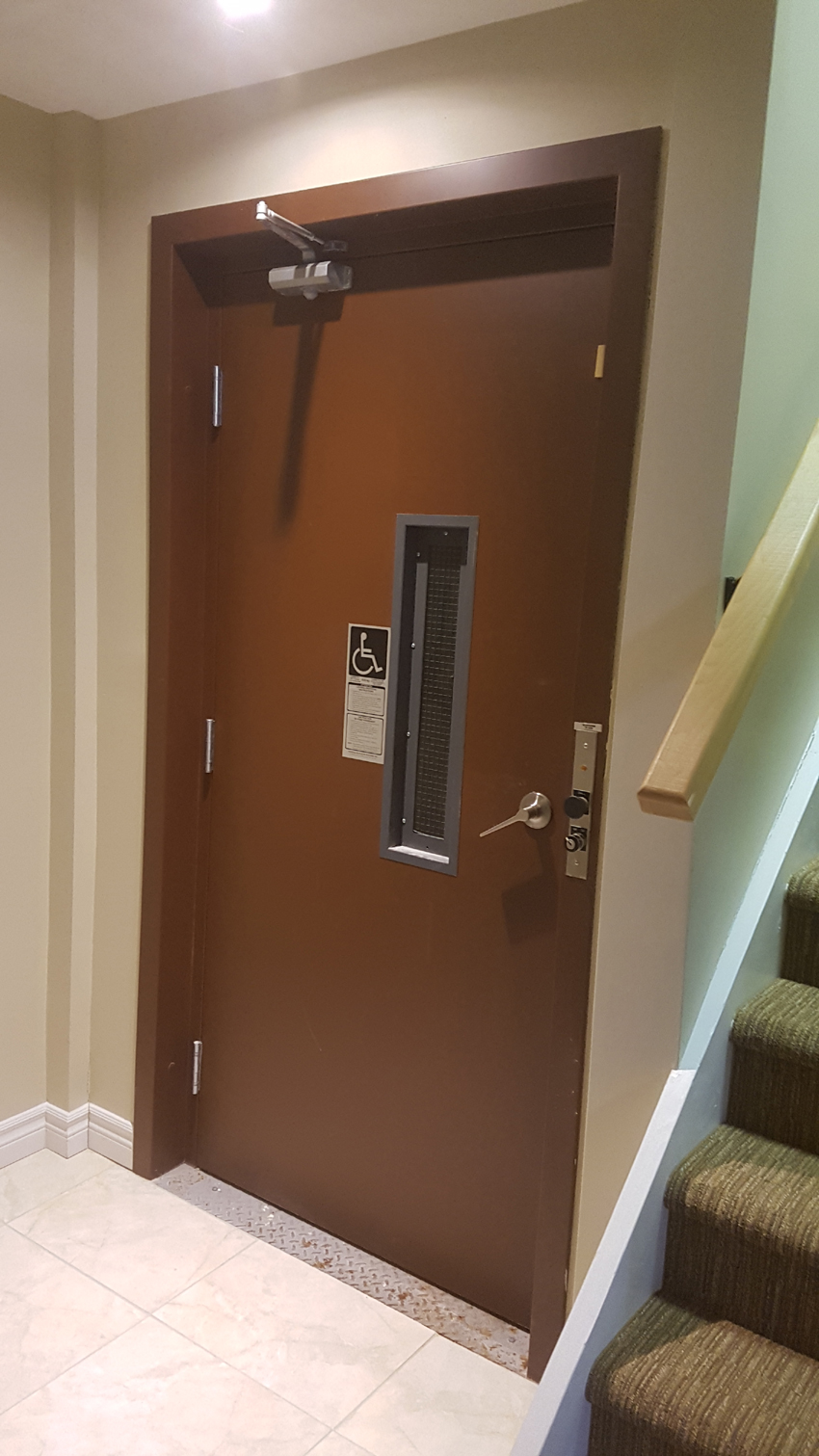

Entrances:

  • Entrances: 939 mm (37”) wide X 1066 mm (42”) or 2032 mm (80”) high
  • Single panel horizontal swing, manual or power operated, provided in prime/ powder coated finish.
  • Hollow metal door provided with 1.5 hour fire label
  • Optional #4 St. Steel entrances with/ without glass inserts in the door panels
  • Provided with constant pressure push button for operation
  • Other finishes may be available on request.



Signals included:

  • Car LED Lighting
  • Car Operating Panel to include: Emergency Light, Capacity Tag, Landing Selection Button, Alarm Button, Optional Autodialer Button.
  • Optional arrival lights with chime
  • Provision for security card for restrictive access & camera is available



Safety Features:

  • Handrail
  • Emergency stop button in the car
  • Battery operated alarm
  • Battery operated emergency cab lighting
  • Optional Autodialer
  • Manual lowering or Battery-operated power of lowering/ rescue device
  • Underpan obstruction sensors for non-enclosed units.



Machine room details:

  • Minimum recommended size to be 1524 mm (60”) Wide x 1524 mm (60”) Deep x 2134 mm (84”) High
  • Machine room located adjacent to the hoistway shaft at bottom landing with solutions available for a remote machine room
  • With door swinging out
  • Provided with required electrical fused disconnect boxes, guarded light with a switch, GFCI Plug
  • Machine room to be constructed as per elevator code and building code with adequate ventilation to suit heat dissipation from the elevator equipment
